Nautic Pro Star AIR

The Comfortable

Serial features

Advanced air damping System
(with integrated compressor)
Adjustable vertical Suspension
High comfort-backrest
Foldable armrests
Adjustable backrest
Seat rotates 360°
Lumbar Support
Foldable footrest

Options

Electrical height adjustment
Seat heater / active clima System
Seatbelt
Logo-Stitch
Custom upholstery

Extras

Deck rail
Controller equipped armrest –
see page Commander M
Seat top only
For direct mounting or mounted on
box – see page Nautic Star Cre w

Symbol guide

Profile

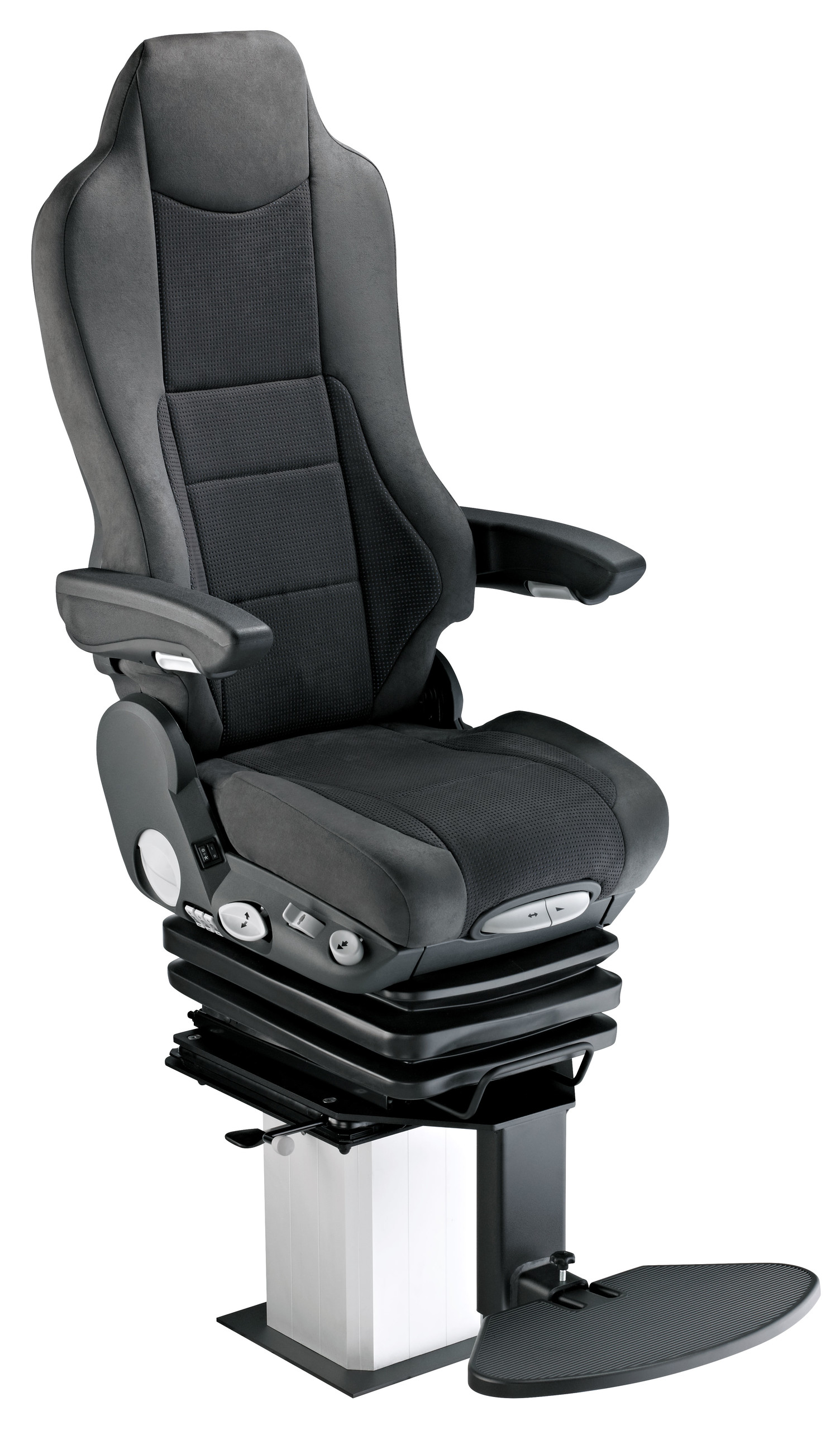

The high-class ergonomical, professional helmsman and operator seat offers the best possible air damping system ensuring high-performance even in heavy conditions. This seat corresponds to the highest standards of ergonomics, comfort and functionality. Also available as non-suspended helmchair

Recommended application

Large ships such as: Container, Tanker, MPC, Ro-Ro, Ferry also for smaller vessels, workboats and Navy.

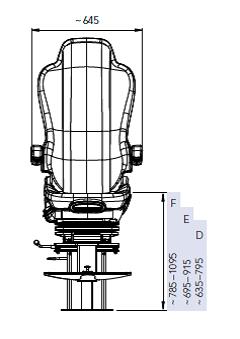

Sitting heights

Version D ~ 635-795mm
Version E ~ 695-915mm
Version F ~ 785-1095mm

Product Code
CCS032

Available Sizes

PLEASE CONTACT US FOR FURTHER INFORMATION
